Create a box with text — textbox • consort

Create a grob with text inside. To extract the units describing grob boundary location can be accessed with grobX and grobY. The units describing width and height can be accessed with grobWidth and grobHeight.

Usage

textbox(
  text,
  x = unit(0.5, "npc"),
  y = unit(0.5, "npc"),
  just = c("center", "left", "right"),
  txt_gp = consort_opt("txt_gp"),
  leftrotate = FALSE,
  box_fn = roundrectGrob,
  box_gp = consort_opt("box_gp"),
  name = "textbox"
)

grid.textbox(...)

Arguments

text: A character text to be passed to textGrob.
x: A number or unit object specifying x-location.
y: A number or unit object specifying y-location.
just: The justification of the text, `"left"`, `"right` and `"center"`. See textGrob for more details.
txt_gp: An object of class gpar style to be applied to the text. Defaults are read from set_consort_defaults. For example, to set a font size for all text inside boxes, use set_consort_defaults(txt_gp = gpar(cex = 0.8)).
leftrotate: If the text box will be rotated 90 degrees counter-clockwise. Default is FALSE.
box_fn: Function to create box for the text. Parameters of `x=0.5`, `y=0.5` and `box_gp` will be passed to this function and return a grob object.
box_gp: An object of class gpar style to be applied to the box.
name: A character identifier.
...: Parameters passed to textbox

Value

A text box grob. grid.textbox() returns the value invisibly.

Examples

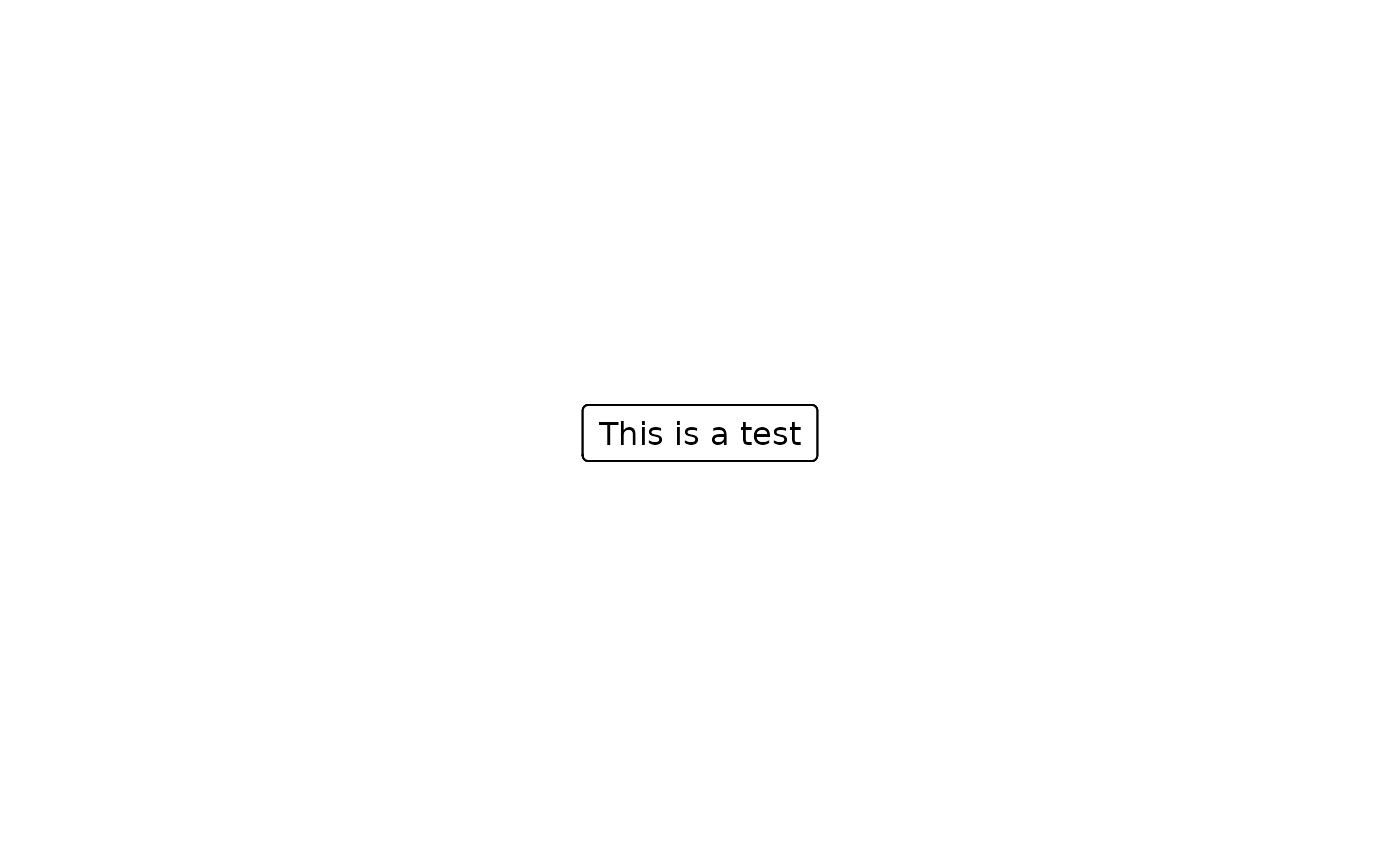

fg <- textbox(text = "This is a test")
grid::grid.draw(fg)
grid.textbox(text = "This is a test")
grid.textbox(text = "This is a test")
